M12 5 Pos Rear Fastening Connector Wire Harness
M12 5 Pos Rear Fastening Connector Wire Harness M12 5 Pos Rear Fastening Connector Wire Harness M12 5 Pos Rear Fastening Connector Wire Harness M12 5 Pos Rear Fastening Connector Wire Harness M12 5 Pos Rear Fastening Connector Wire Harness

M12 5 Pos Rear Fastening Connector Wire Harness

Item No.: M12-A-M-ST-05P-PM-200MM
Product series:  M12 Panel Connector
Connector code: A type
Connector Gender: Male
Waterproof grade: IP67
Connector core number:  5P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 5 Pos Rear Fastening Connector Wire Harness Product Description



M12 panel mount connector with 3 4 5 6 8 12 17 Pin male plug and female socket and gold-plated contacts available can be provided by FLECONN. In order to determine the direction of the angled cable outlet of the mating connector,  we can provide 90 degree right angled M12 panel mount connectors with 4, 5 and 8 position in wire solder pin and PCB DIP solder pin. When completely mated the connectors are IP67 rated to ensure protection from liquids and dust.


M12 5 PIn Panel Mount Connector，Rear Fasting，Male product parameters



Product series: M12 Panel Connector Connector Gender: Male
Connector code: A type Connector core number: 5P
Industry standard: IEC61076-2-109 Connector type: Panel type, front lock
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 26AWG Connection method: threaded connection
Rated current: 0.5A Connector conductor: copper gold plated
Rated voltage: 50V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M12 5 Pole A-coded Front Mount Connector Wire Harness Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

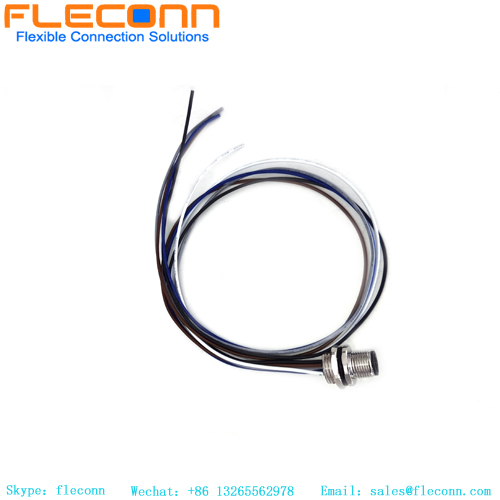

M12 5 Pos Rear Fastening Connector Wire Harness

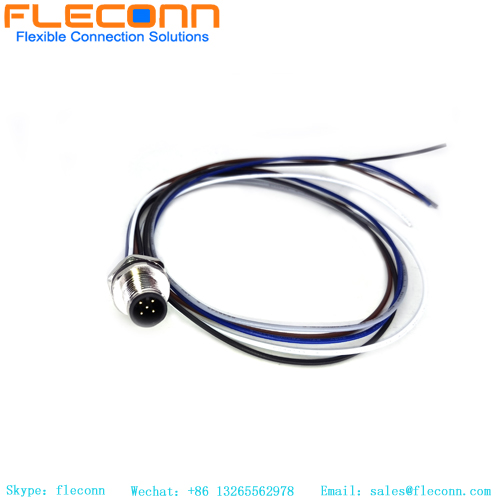

M12 5 Pos Rear Fastening Connector Wire Harness

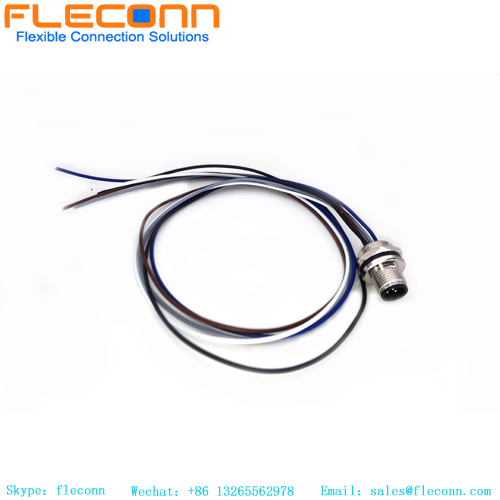

M12 5 Pin Male Panel Mount Connector Cable

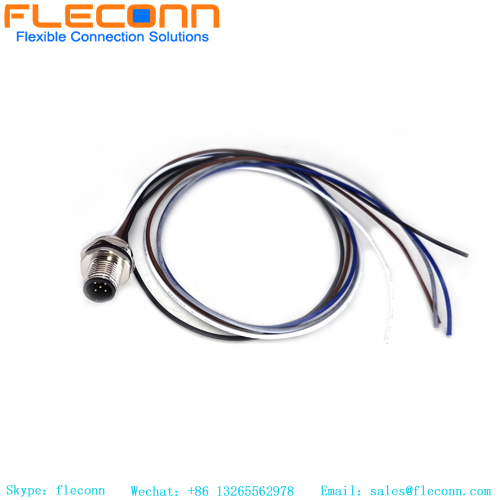

M12 5 PIn Panel Mount Connector，Rear Fasting，Male

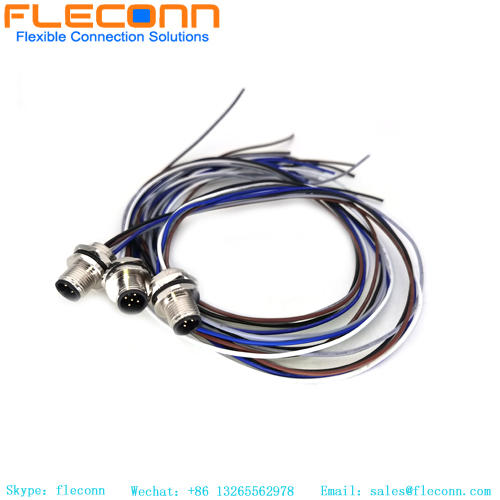

M12 5 Pole A-coded Front Mount Connector Wire Harness

M12 5 Pin Panel Mount Connector With Cable

Other M12 Panel Mount Connector

FLECONN can provide IP66 waterproof M12-X 8 Pin Panel Mount Connector for power and signal transmission connections.
